refrigerated truck

  • 1-35ton loading capacity
  • Prolong the storage of goods with lowest temperature of -20℃
  • Imported and China-made cooling system
  • Automatic refrigeration, heating, ventilation and defrost
  • Thermal insulation can reduce the exchange of heat
SEND ENQUIRY
  • refrigerated truck
  • refrigerated truck
  • refrigerated truck

Refrigerated truck, also called refrigerator truck, is a van or truck designed to carry perishable goods at specific temperatures. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. DELI refrigerated truck is widely used to transport fish, shrimp, meat, ice cream, fruit, vegetable and medicine, etc. DELI refrigerated truck has the following seriess for you to choose:

  • Fresh-keeping refrigerated trucks
  • Medicines refrigerated trucks
  • Fruits and vegetables refrigerated trucks
  • Fresh meat refrigerated trucks
  • Dangerous goods refrigerated trucks

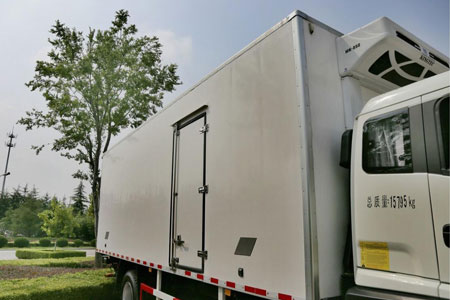

Tops of Refrigerated Truck

DELI refrigerator truck’s refrigerated container is made of special materials with well thermal insulation. The top of refrigerated truck has to be inspected regularly and strictly to ensure there is no exchange of heat with outside world. Usually the freight in the refrigerated container cannot be stored for a long time. And the container should be attached with refrigeration system to ensure the proper temperature.

refrigerated truck
refrigerated truck
refrigerated truck
refrigerated truck
refrigerated truck
refrigerated truck

Under Body of Refrigerated Truck

underbody of refrigerated truck
underbody of refrigerated truck
underbody of refrigerated truck
underbody of refrigerated truck

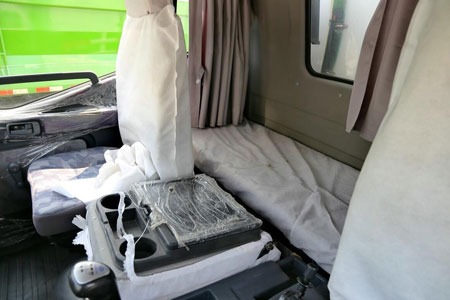

Cab of Refrigerated Truck

The cab of the refrigerated truck offers a cozy and comfortable environment for drivers. The room of two seats is just right. The sleeper in the cab ensures that drivers can have a good rest and drive without fatigue. In a word, it is designed with hommization.

cab of refrigerated truck
cab of refrigerated truck
cab of refrigerated truck
cab of refrigerated truck
cab of refrigerated truck
cab of refrigerated truck

Model AYDL- Foton 4X2 Refrigerated Truck
Chassis Model BJ1166VJPEN-1
Cab With air conditioner, safety belt, temperature controller.
Engine Type ISF3.8S5168
Horse Power 168
Max.Speed (km/h) 90
Power 125kw
Displacement 3760ml
Gearbox 8JS75TB
Emission Standard Euro V
Dimensions (mm) Whole Truck 9360x2490x3765mm
Carriage 6720x2320x2315mm
Leaf Spring 8/10+8
Wheelbase 5250mm
Weight (kg) Kerb Mass 7260kg
Total Mass 15600kg
Loading Capacity 8340kg
Antilock Braking System(ABS) Optional
Tire 9.00R20, 6 units
Fuel type Diesel
Remark According to your requirements (Color, Logo, etc.)
