cement mixer truck
- 58% drum specifications filling rate
- Effective mixing volume from 3 to 16 Cubic Meter
- The tank puzzle adopt longitudinal welding, reduce the welding seam
- The new technology alloy steel shape blade protects the mixer blades from abrasion
- Shuipo welding technology ensure the sealing of mixing tank
Cement truck also called concrete mixer truck, is widely used to transport concrete in short distance. During transportation, the concrete is keeping agitating by a steel spiral blade in the tank. In charging and transportation, the spiral blade is turning in one direction, while in discharging, the spiral blade is turning in the other direction.
Tops of Cement Mixer Truck
Detailed Parts of Cement Mixer Truck
DELI concrete truck is semi-trailer designed and it can be used together with different well-known tractor chassis made in China, such as: FAW, Dongfeng, HOWO and Auman, etc. The concrete truck uses high power hydraulic system and motor to supply stable mixing and transportation performance.

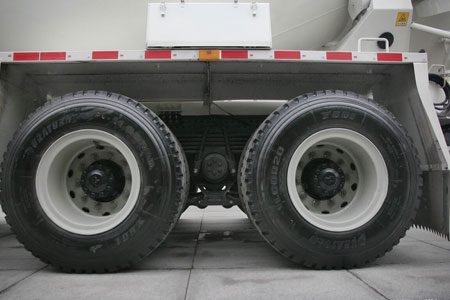

Under Body of Cement Mixer Truck
DELI cement truck has won the Certificate for China Compulsory quality test as well as the China Certification Centre for Automotive Products. It has been exported to many countries all over the world, such as: Ethiopia, Kenya, Uzbekistan, Saudi Arabia and Korea, etc. This cement truck has earned good reputation among customers both domestic and abroad. We are sure that you will be satisfied with this concrete mixer truck too!
| Model | AYDL- Shacman Delong F3000 6X4 Cement Mixer Truck | |
|---|---|---|
| Chassis Type | SX5256GJBMK324 | |
| With air conditioner, safety belt | ||
| Engine | Type | WP6.245E40 |
| Horse Power | 245 | |
| Max.Driving Speed (km/h) | 80 | |
| Gearbox | FAST8JS85F | |
| Front Axle | HF9 with 9 tons rated loading capacity | |
| Driving Axle | HC16 with 16 tons rated loading capacity | |
| Emission Standard | Euro Ⅳ | |
| Dimensions (mm) | Whole Truck | 8310×2500×3780 |
| F/R Overhang | 1485/2275 | |
| Leaf Spring | 3/5 | |
| Wheelbase | 3150+1400mm | |
| Weight (kg) | Kerb Mass | 11700 |
| Total Mass | 13170 | |
| Antilock Braking System(ABS) | Optional | |
| Tire | 11.00R20 radial tyre,10 units | |
| Fuel type | Diesel | |
| Fuel tank(L) | 300L | |
| Remark | According to your requirements (Color, Logo, etc.) | |
